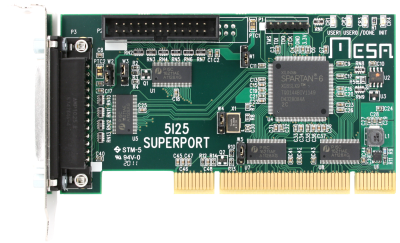

Začlenenie 5i25 do linuxcnc

wget http://www.mesanet.com/pdf/parallel/5i25man.pdf
wget http://www.mesanet.com/software/parallel/5i25.zip
unzip 5i25.zip
mkdir /lib/firmware/hm2
mkdir /lib/firmware/hm2/5i25
mkdir /usr/share/doc/hostmot2-firmware-5i25
cp 5i25/configs/hostmot2/5i25_7i76x2.bit /lib/firmware/hm2/5i25/5i25_7i76x2.bit
cp 5i25/configs/hostmot2/5i25_7i76x2.xml /lib/firmware/hm2/5i25/5i25_7i76x2.xml
cp 5i25/configs/hostmot2/5i25_7i76x2.pin /usr/share/doc/hostmot2-firmware-5i25/5i25_7i76x2.pin
chmod 775 5i25/utils/linux/mesaflash
5i25/utils/linux/mesaflash --scanpci
alebo - iná verzia mesaflash
5i25/utils/linux/mesaflash --list
5i25/utils/linux/mesaflash --device 5I25 --write 5i25/configs/hostmot2/5i25_7i76x2.bit
5i25/utils/linux/mesaflash --device 5I25 --verify 5i25/configs/hostmot2/5i25_7i76x2.bit
5i25/utils/linux/mesaflash --device 5I25 --write 5i25/configs/hostmot2/5i25_7i76x2.bit --fallback
5i25/utils/linux/mesaflash --device 5I25 --verify 5i25/configs/hostmot2/5i25_7i76x2.bit --fallback

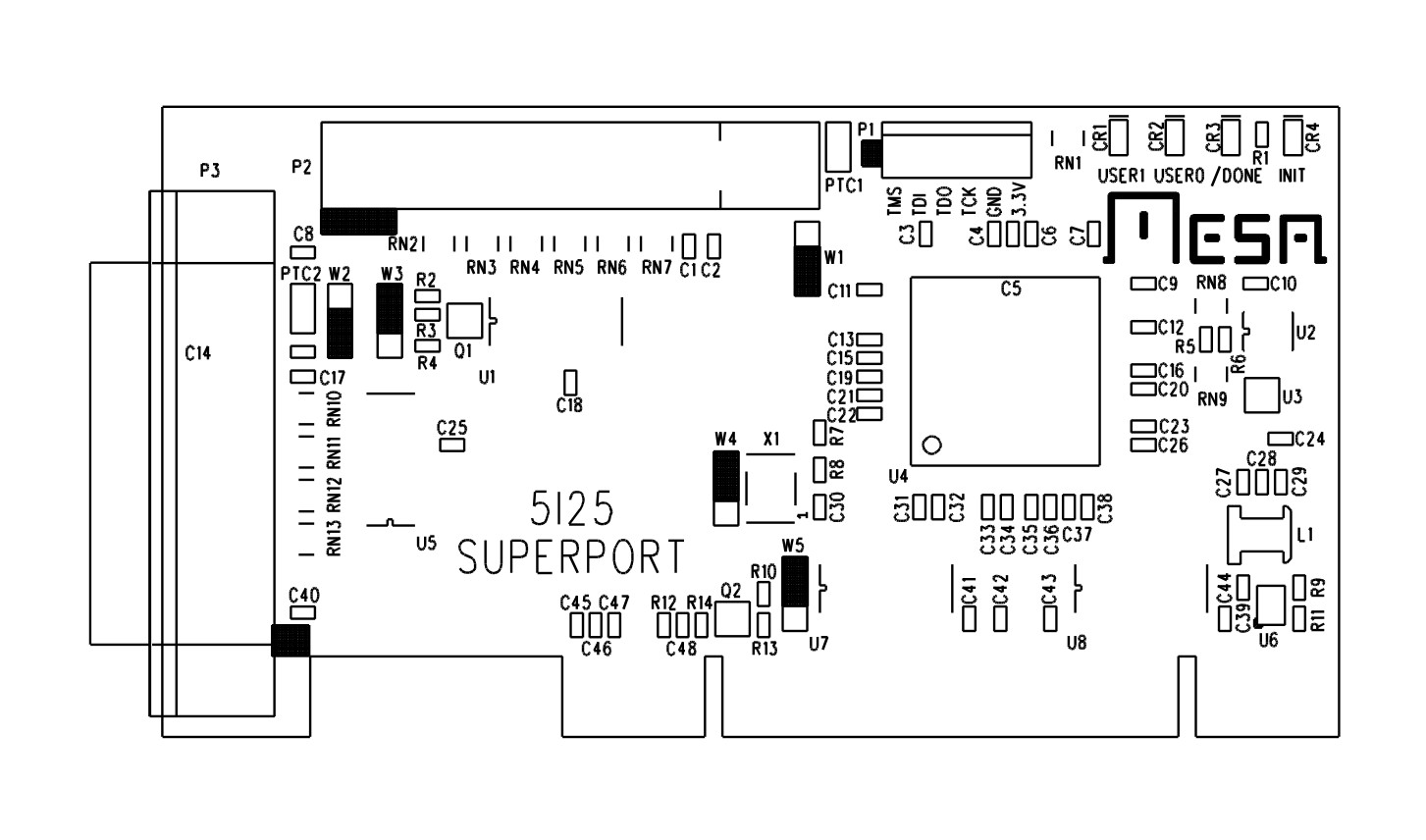

Konfigurácia 5i25
W1UP5V do 7i76 P2 povolene
W1DOWN*5V do 7i76 P2 zakázané - default
W2UP5V do 7i76 P3 povolene
W2DOWN*5V do 7i76 P3 zakázané - default
W3UP*povolena 5V logika - default
W3DOWNpovolena 3V3 logika
W4UP*Interne Pull-up povolene - default
W4DOWNInterne Pull-up zakazane
W5UP*PCI zbernica pripojena - default
W5DOWNPCI zbernica odpojena

Manuál 5i25
